Selective Wire Container,Collapsible & Stackable Wire Mesh Containers
Release time:2013年08月17日 From:本站原創(chuàng) Clicks:
Basic Info.
Model NO.:TN-Storage cage
Type:
Foldable Box Pallet
Entry Type:2-Way
Style:2 Way for Forklift
Material:Steel
Capacity:100~3000kg
Export Markets:Global
Additional Info.
Packing:Carton & Packaged With Pallet
Standard:L800/1000/1200xw600/800/1000xh640/840/890
Origin:China
HS Code:73089000
Production Capacity:5000PCS/Month
Product Description

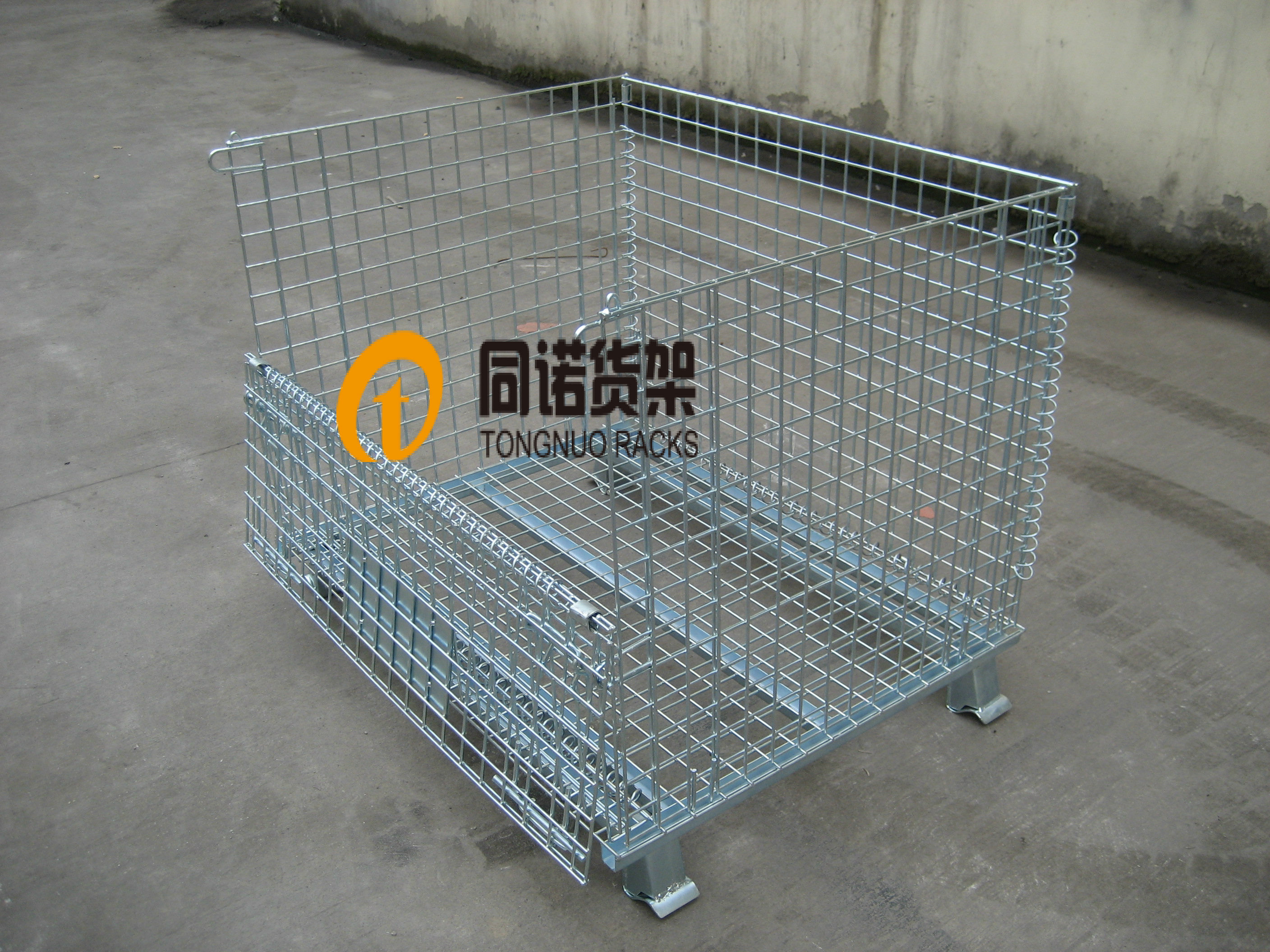

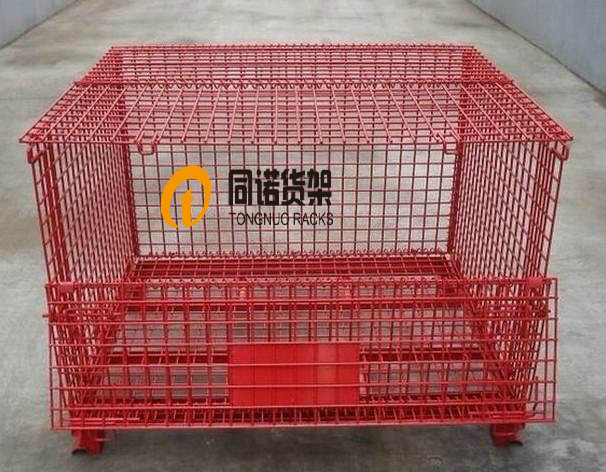

Selective Wire Container (TN-Storage cage )
1. Product Advantage:
A. Welded wire mesh structure
B. Electro galvanized finish Powder coated finish is available
C. Stackable, collapsible, folds flat to save space
D. Drop gate for easy access when stacked
E. Easy fork access from all sides
F. Lowest maintenance cost
G. Many available sizes and capacity
2. Quality Guarantee:
as well as a team of professional QC staff, which are the basis of product quality assurance.
3. Our Service:
Short delivery time under the support of large production capacity. We promise to offer our customers best quality products at competitive price with excellent delivery time.
| Wire container | |||||||
Item no. |
Specification (mm) | Wire dia. (mm) |
Mesh (mm) |
Stack level | Load capacity (kg) | ||
| L | W | H | |||||
| TN-A3 | 800 | 600 | 640 | 6.0 | 50x50 | 4 | 800 |
| TN-C3 | 800 | 600 | 640 | 6.0 | 50x100 | 4 | 600 |
| TN-A5 | 1000 | 800 | 840 | 6.0 | 50x50 | 4 | 1500 |
| TN-C5 | 1000 | 800 | 840 | 6.0 | 50x100 | 4 | 1000 |
| TN-S5 | 1000 | 800 | 840 | 4.8 | 50x50 | 4 | 500 |
| TN-A7 | 1200 | 1000 | 890 | 6.0 | 50x50 | 4 | 2000 |
| TN-S7 | 1200 | 1000 | 890 | 6.0 | 50x100 | 4 | 1000 |
